C Series
(Electric Traction)
C Series
Swing Door
Brochure

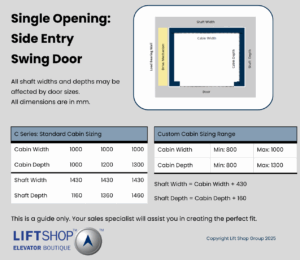

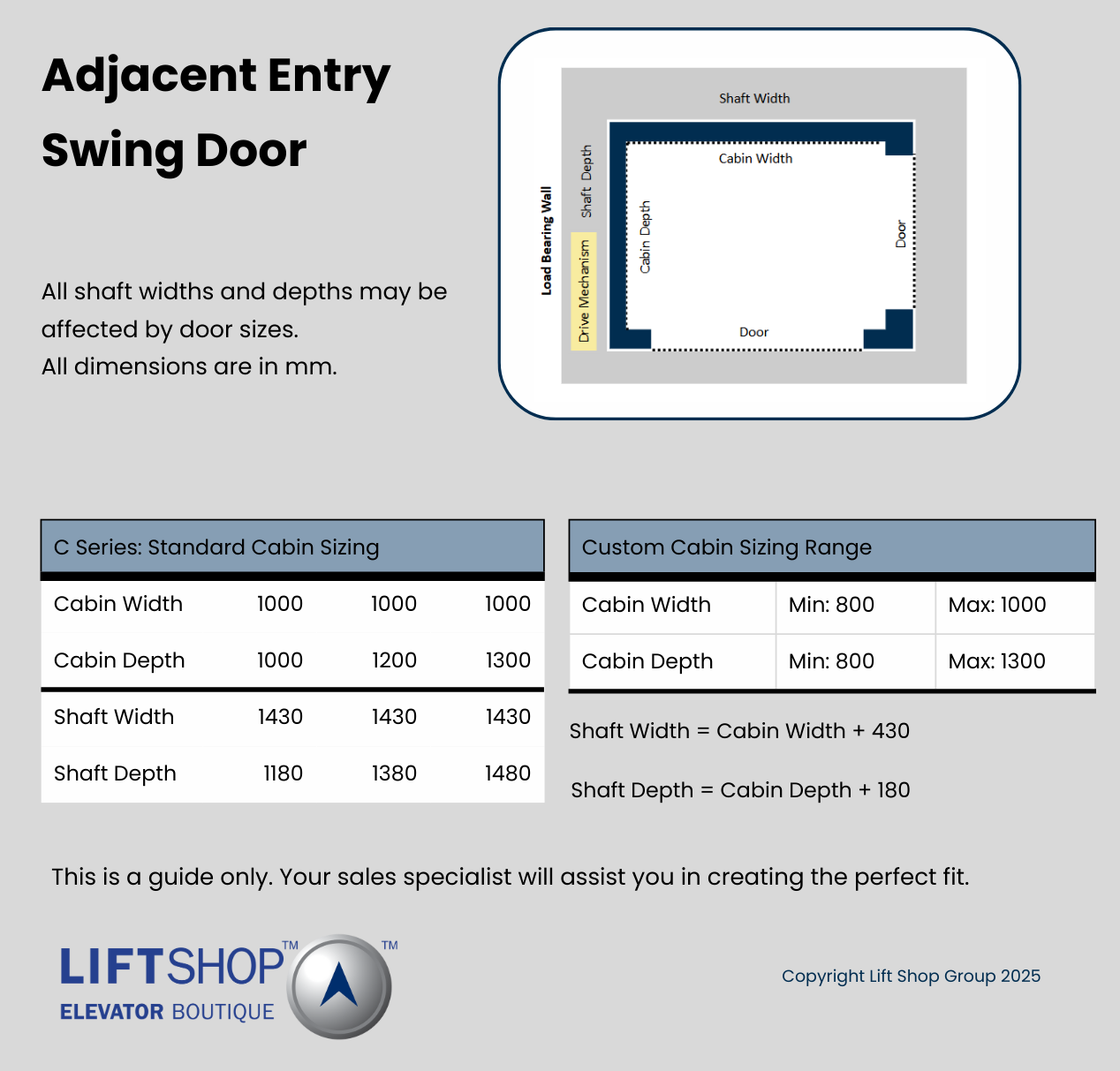

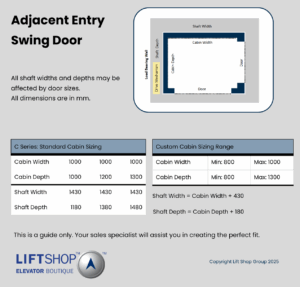

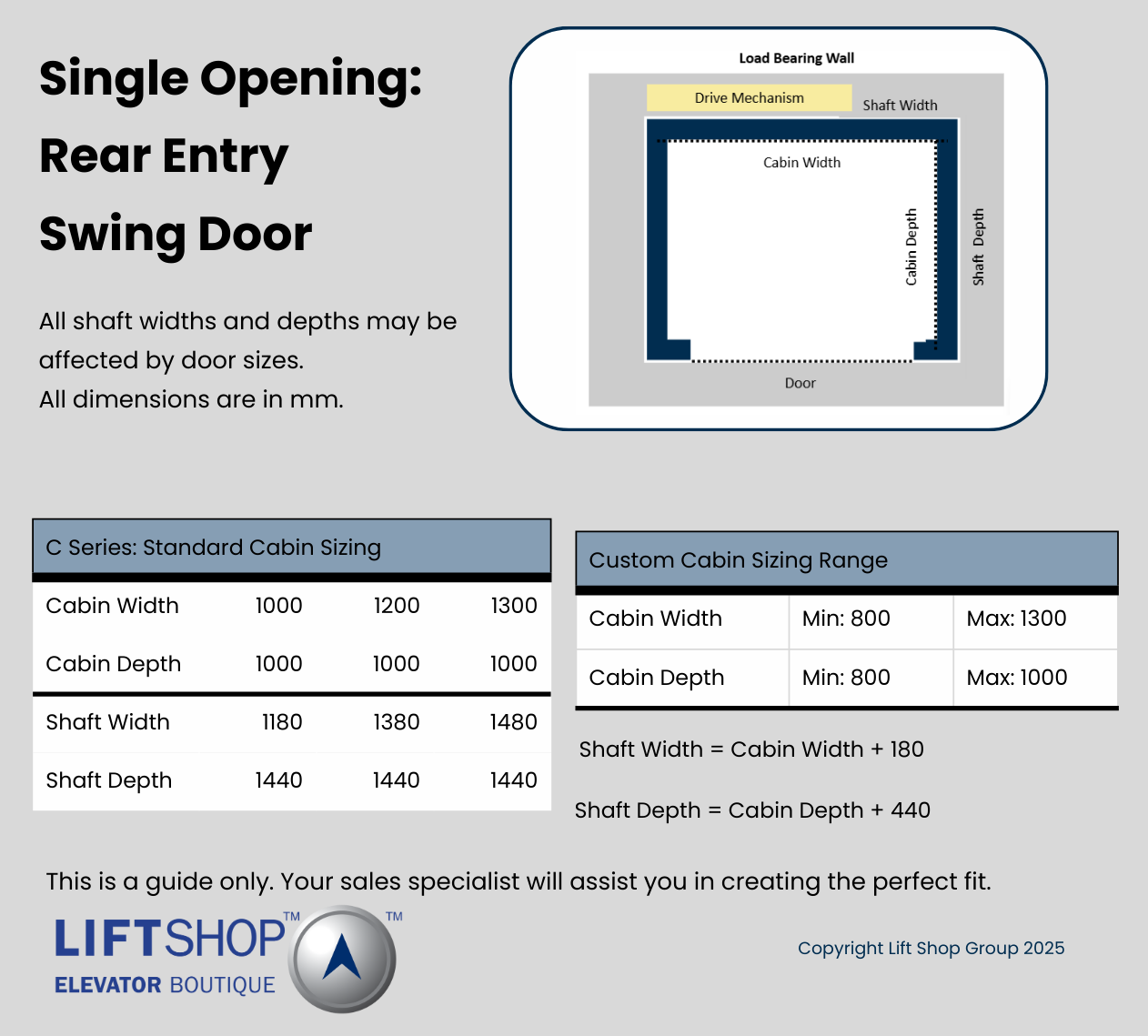

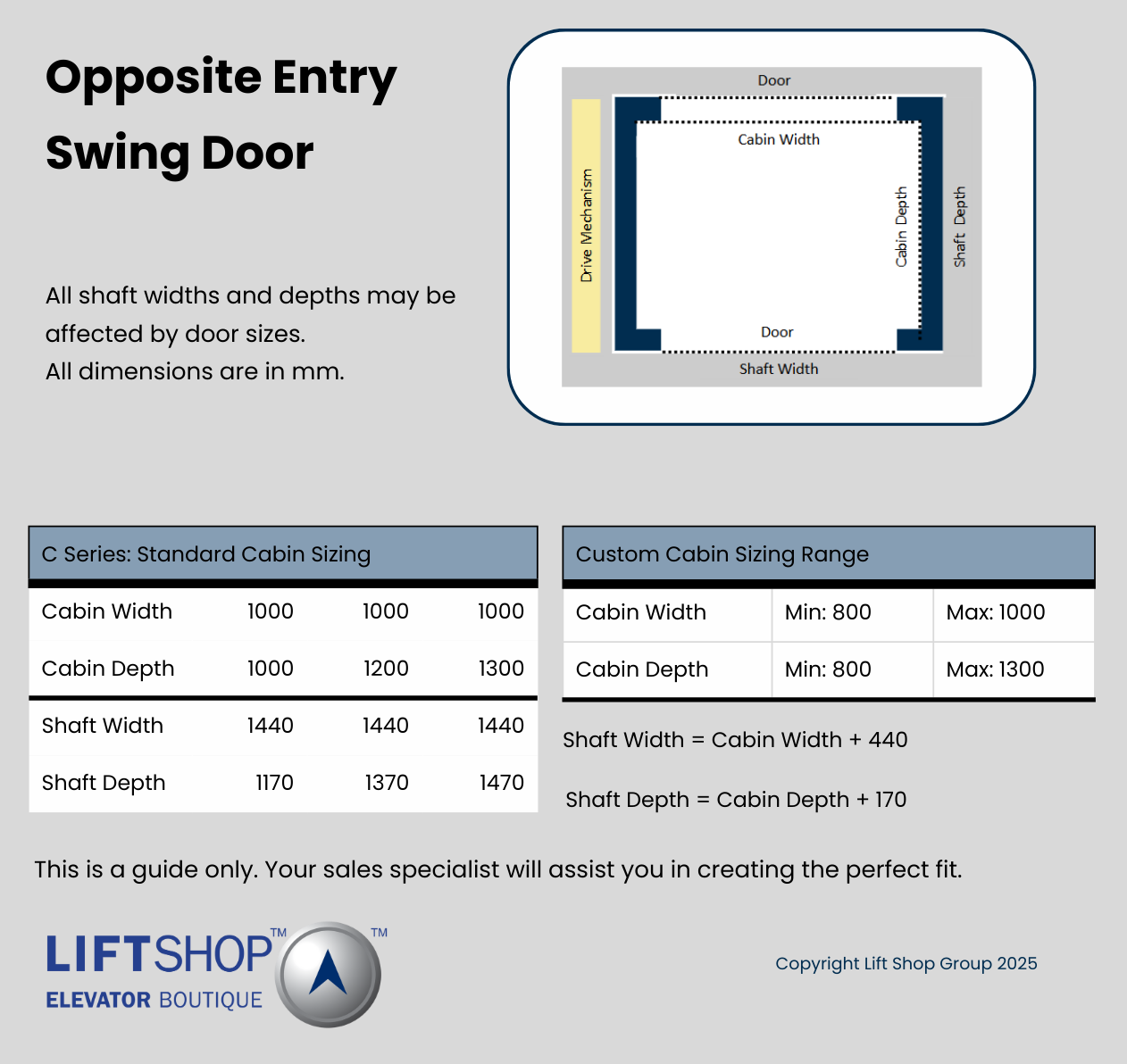

Drawings
Sliding Door
Brochure

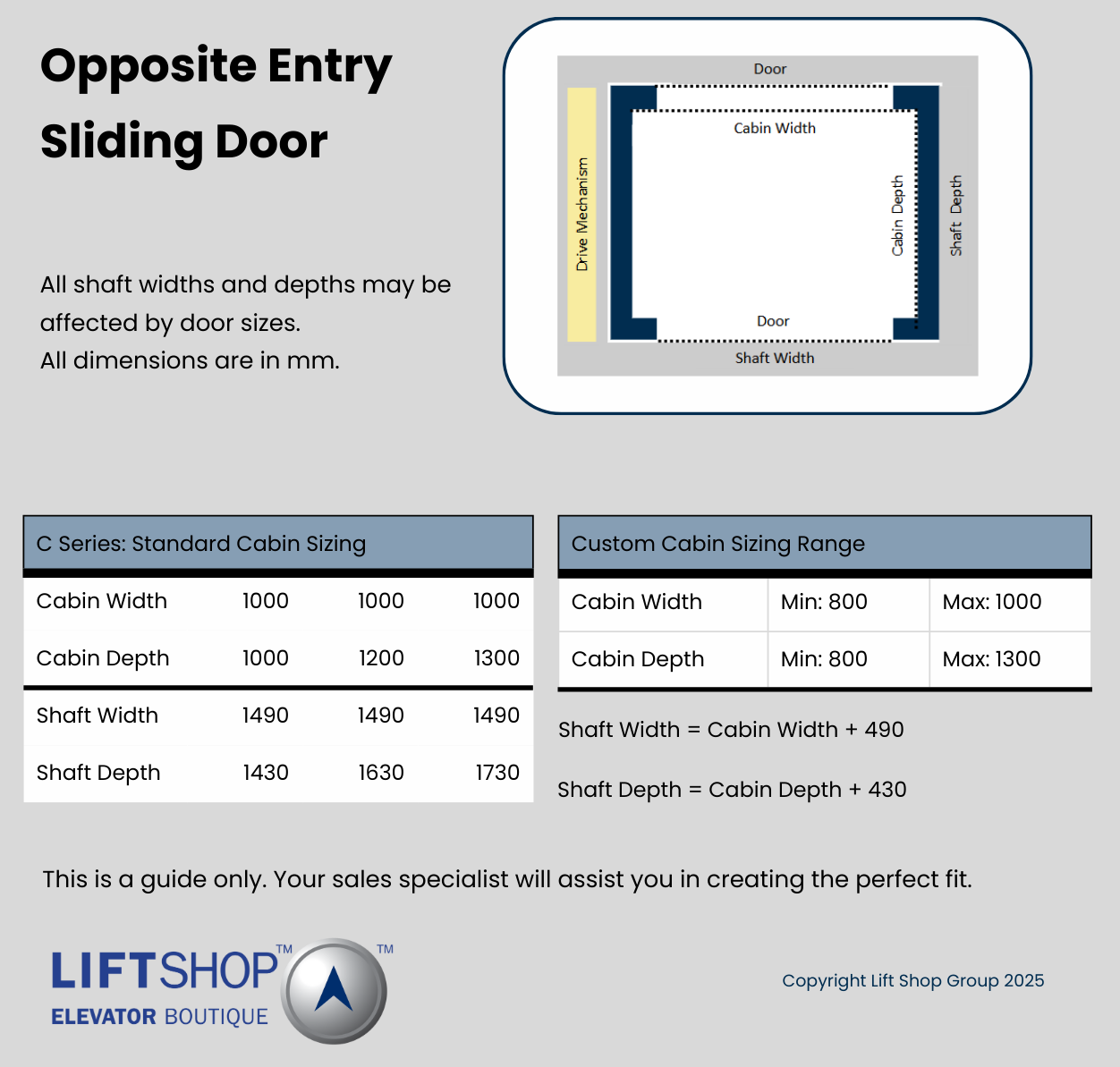

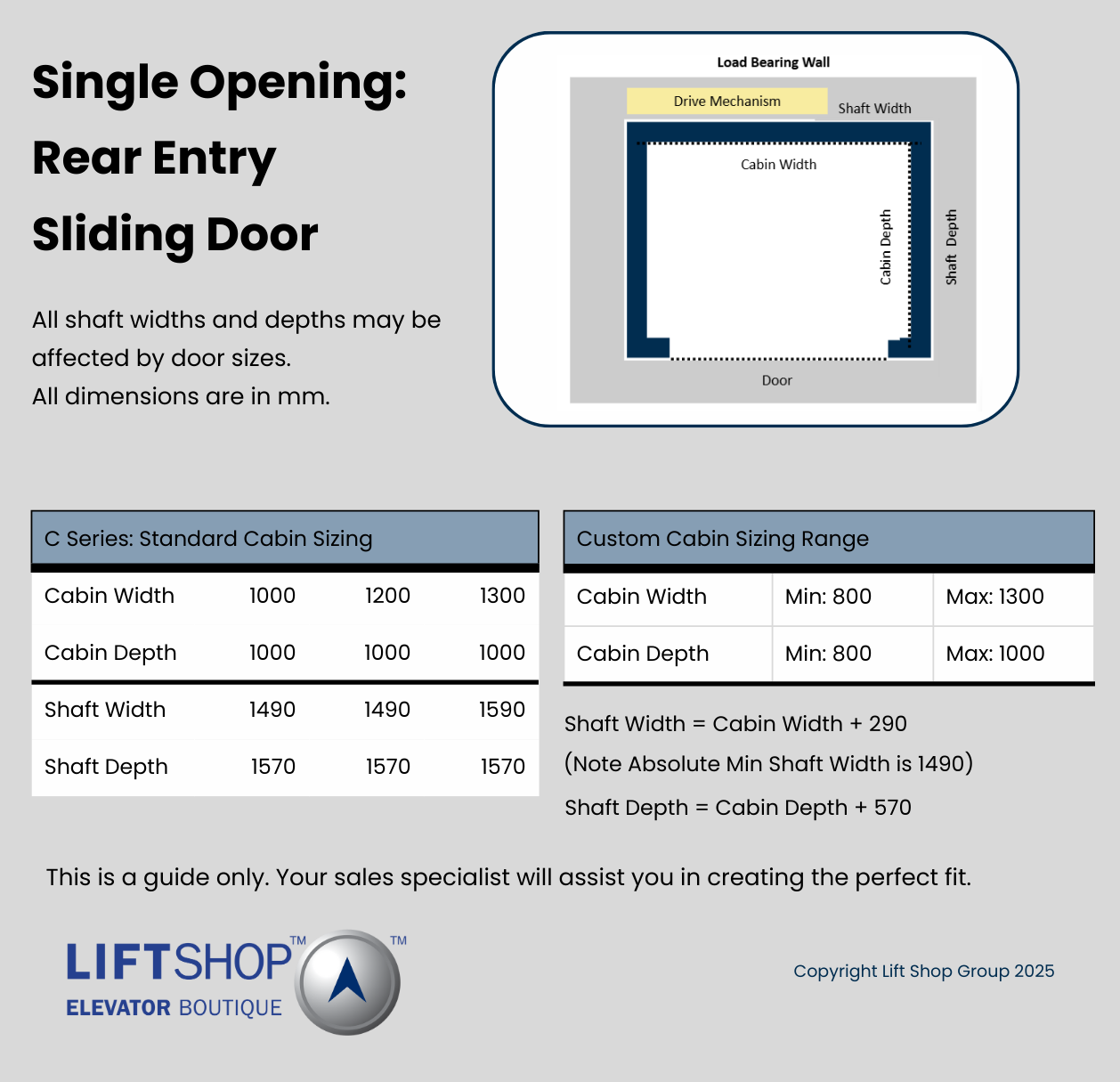

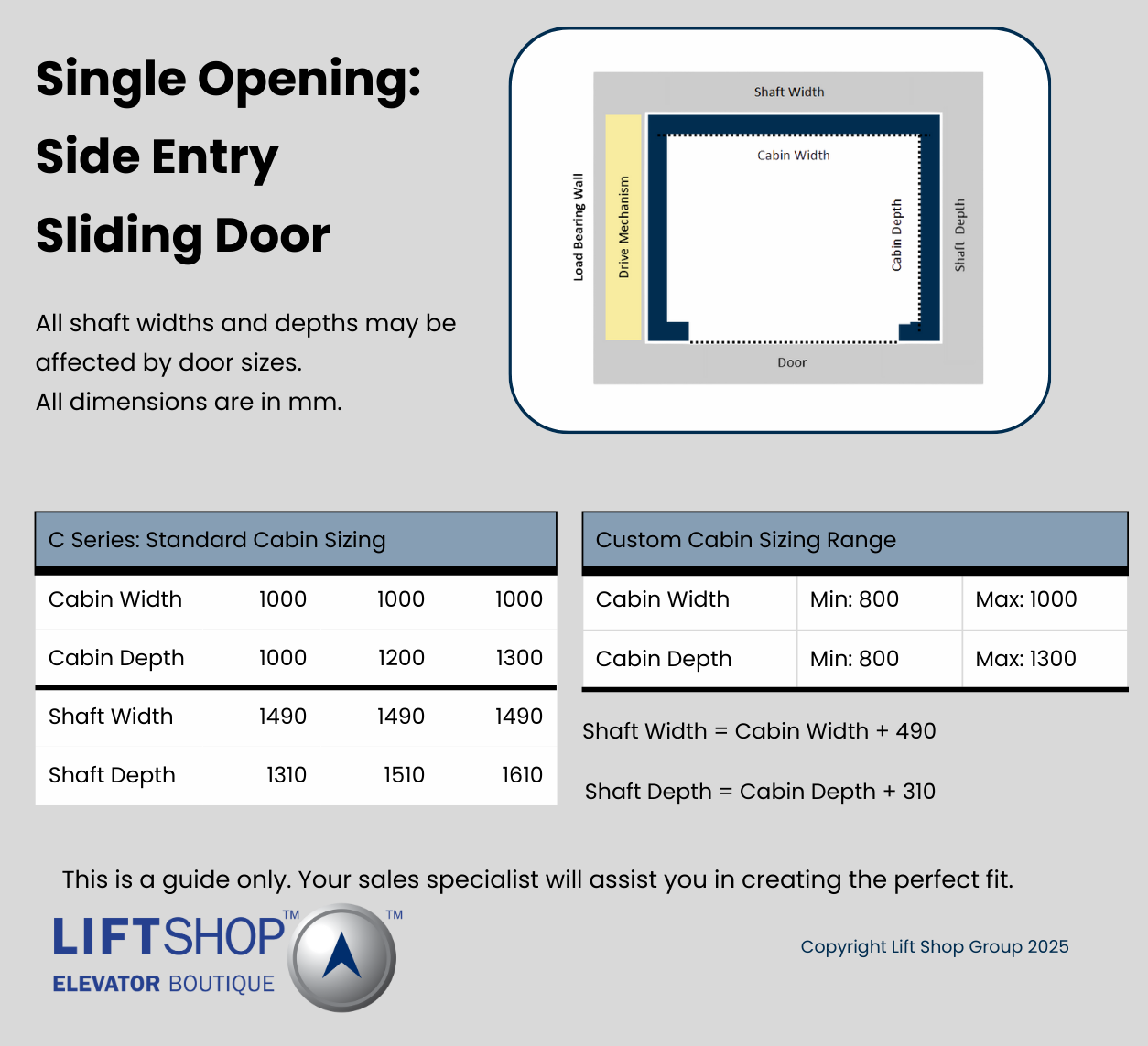

Drawings
Why it’s awesome
- Fast lead times
- Standardised range from $47,000 + GST (2 Stops)
- Electric Gearless Traction Drive
- Place of origin – Europe
- Sliding and swing doors
- 2, 3, 4 level lifts
Style
Electric
Gearless traction
Lead time
Fast
Best for
2 – 4 level lifts
Capacity
5 persons
Speed
0.30m/s
Specifications
Capacity:
5 persons (385kg)
Speed:
Fast 0.30m/s
Power:
Electric – 25A
Pit depth:
180mm
Headroom:
2750mm
Max travel:
5 Floors (12m)
Drive system:
Electric
Openings:
Single (1), opposite (2), adjacent (2)
Door:
Sliding
Compliance:
AS1735.18/1
Why It’s Awesome
- Fast lead times
Standardised range from $45,000 + GST
Electric Traction Drive
Place of origin – Europe
Sliding and swing doors
2, 3, 4 level lifts
Free – Flush Mount Phones on all lifts
Phones are a safety necessity and not an option.
The stunningly beautiful and integrated phone is made exclusively for Lift Shop in Australia in the USA. (value USD$270.00)
The discrete and elegant system replaces the existing phone that simply has no place in a luxury home elevator.
Free – Flush Mount Phones on all lifts
Phones are a safety necessity and not an option.
The stunningly beautiful and integrated phone is made exclusively for Lift Shop in Australia in the USA. (value USD$270.00)
The discrete and elegant system replaces the existing phone that simply has no place in a luxury home elevator.
Free Inclusions
- MUST HAVE In-Cabin Self Rescue ($1,380)
- Free storage one month ($970)
- Material transport from storage to site ($990)
- 2055mm cabin ceiling height ($1,500)
- 12 month service and warranty ($990)
- Integrated Flush Phone ($750)
Free Inclusions
- MUST HAVE In-Cabin Self Rescue ($1,380)
- Free storage one month ($970)
- Material transport from storage to site ($990)
- 2055mm cabin ceiling height ($1,500)
- 12 month service and warranty ($990)
- Integrated Flush Phone ($750)
Warranty
All new lifts are sold with industry-leading warranties and inclusions.
This can be extended for a fee so that labour and parts are covered indefinitely.
Breakdown Rates:
We have the lowest breakdown rates because we have eliminated the main two reasons for breakdowns.
No: 1 Reason is Vandalism
As our lifts are 80% found in private homes, they don’t have exposure to the general public and misuse.
No: 2 Reason is Inferior Components.
It is common to use part replacements as future revenue streams. We appreciate that homeowners don’t like that, so use superior parts and systems, which means problems are rare.
The below warranty comparison tool highlights some of the differences.
The Lift Shop range is exclusive and different which is why we are often imitated and never duplicated.
Warranty
All new lifts are sold with industry-leading warranties and inclusions.
This can be extended for a fee so that labour and parts are covered indefinitely.
Breakdown Rates:
We have the lowest breakdown rates because we have eliminated the main two reasons for breakdowns.
No: 1 Reason is Vandalism
As our lifts are 80% found in private homes, they don’t have exposure to the general public and misuse.
No: 2 Reason is Inferior Components.
It is common to use part replacements as future revenue streams. We appreciate that homeowners don’t like that, so use superior parts and systems, which means problems are rare.
The below warranty comparison tool highlights some of the differences.
The Lift Shop range is exclusive and different which is why we are often imitated and never duplicated.
Low Service Costs
Service costs need to be low because they are usually paid for by one home owner in after-tax dollars. (Unlike commercial elevators)
How:
- Lift Shop has the largest home lift service portfolio for its own installed lifts, meaning travel time efficiency.
- Lift Shop only services lifts it has installed, so we are never guessing what to do.
This means a more reliable service for clients and lower costs.
Low Service Costs
Service costs need to be low because they are usually paid for by one home owner in after-tax dollars. (Unlike commercial elevators)
How:
- Lift Shop has the largest home lift service portfolio for its own installed lifts, meaning travel time efficiency.
- Lift Shop only services lifts it has installed, so we are never guessing what to do.
This means a more reliable service for clients and lower costs.
A Series | A+ Series | C Series | E Series | |
---|---|---|---|---|
Style | Pre - Engineered - Hydraulic | Custom - Hydraulic | Pre Engineered Electric - Gearless Traction | Custom Electric - Gearless Traction |
Lead Time *Stock and labour availability vary | Pre-Engineered - 4-5 months * | Custom Built - 5-6 months * | Fast - 4 - 5 Months | Custom built 5-6 months |
Speeds | 0.30m/s | 0.30m/s | 0.30m/s | 0.30m/s - 0.50m/s |
Best for *Stock and labour availability vary | 2 - 4 levels | 2 - 6 levels, - Custom Hydraulic Drive | 2 - 4 levels, | 2 - 6 Levels |
In Car Rescue System | Yes | Yes | Yes | Yes |
How much does a home lift cost? Due to many options, prices are indicative | $43,000 + | $51,000 + | $47,000 + | $64,000 + |
Drive Type Options | Electric - Hydraulic | Electric - Hydraulic | Electric - Gearless Traction | Electric - Gearless Traction |
Capacity | 4 - 6 persons 300kg - 400kg | 4 - 6 persons 300kg - 400kg | 5 Persons 385kg | 6-7 Persons 450kg |
Place of Origin | Europe | Europe | Europe | Europe |
Doors | Swing Door Sliding Door | Swing Door Sliding Door | Swing Door Sliding Door | Swing Door Sliding Door |
Suitable Locations | Private home or | Private home | Private Home | Private Home |
Inclusions | 1 month free storage 2100mm cabin ceiling height Scaffold for lift installation GSM unit | 1 month free storage 2100mm cabin ceiling height Scaffold for lift installation GSM unit | 2055mm cabin ceiling height Scaffold for lift installation GSM unit | 1 month free storage 2100mm cabin ceiling height Scaffold for lift installation GSM unit |
Maximum Number of floors | 4 | 6 15.1m | 4 9m | 6 15.1m |
Cabin Sizes | 1000mm x 1000mm | Custom Sizing | 1000mm x 1000mm 1000mm x 1200mm 1100mm x 1400mm | Custom Sizing |
Pit Depth | Hydraulic 150mm | Hydraulic 150mm | 180mm | 270mm |
Drawings | Swing Door Drawings Sliding Door Drawings | Swing Door Drawings Sliding Door Drawings | 1000mm x 1000mm 1000mm x 1200mm 1100mm x 1400mm | Swing Door Sliding Door |
Shaft Options | Shaft by Builder | Shaft by Builder | Shaft by Builder | Shaft by Builder |
Internal Cabin Ceiling Height | 2100mm | 2100mm | 2055mm | 2100mm |
Car Door | Swing Door - No – Infrared sensors provided Sliding Door - Yes - fully enclosed | Swing Door - No – Infrared sensors provided Sliding Door - Yes - fully enclosed | Swing Door - No – Infrared sensors provided Sliding Door - Yes - fully enclosed | Swing Door - No – Infrared sensors provided Sliding Door - Yes - fully enclosed |
Cabin configurations | Single / Opposite/ Adjacent Opening | Single / Opposite/ Adjacent Opening | Single / Opposite/ Adjacent Opening | Single / Opposite/ Adjacent Opening |
Minimal Headroom | 2400mm - 2700mm | 2400mm - 2700mm | 2750mm | 2750mm |
Power Requirements | Single Phase | Single Phase Three Phase | Single Phase | |
Drive Machinery Location | Hydraulic: Small Cabinet near lift | Hydraulic: Small Cabinet near lift | Electric: Within system above lift |
