A Series Elevator

The All-Rounder

Australia's Best Seller for 30+ years.

The A Series Elevator by Lift Shop is a proven luxury home lift, with long-term reliability, and installation for 30 years.

360° - Drag to look around

Included

Premium Features Included as Standard

Our Range comes equipped with advanced safety, reliability and comfort features designed for long-term everyday living.

Explore Service →

GSM Phone Unit

1 Month Storage

1-Year Routine Service

Support, Service & Reliability for the Long-Term

White glass-panelled A Series swing door home lift in a New Farm garage beside a home gym

Swing Door Lifts

View the Gallery →

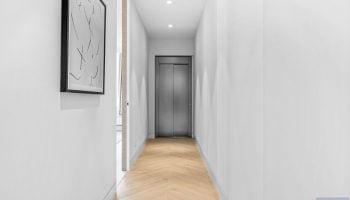

Bronze A Series sliding lift doors in a long entry hall in Hope Island

Sliding Door Lifts

View the Gallery →

Geometry

How much Space do you need to Fit a Lift in your Home?

Consider the Pit, Headroom, Raw Opening & Shaft Size

Click a Point on the Shaft

Select Headroom, Travel, Pit, Shaft Roof or FFL to understand each geometric requirement.

Cross-section of a two-level home lift shaft showing the pit, travel, headroom, shaft roof and finished floor levels

Lift Specifications

A Series SpecificationsDetails
Door TypeSwing or Sliding
Max Travel6 Floors (15.1m)
SpeedFast (0.30 m/s)
Time Between 2 Floors10 seconds
Capacity5 - 6 Persons
300 - 400kg
NoiseQuiet
OpeningsSingle (1), Opposite (2), Adjacent (2)
Pitfrom 150mm* indicative only
Headroom2400mm* indicative only
Power32 amp
MachineSmall Cabinet Near Shaft
700 x 450 x 1800mm
Minimum Total Shaft Space1350mm (width) x 1160mm (depth)Estimate, single opening swing door

These are the common minimum dimensions. Lower and alternative dimensions are always possible.

Home lift inspiration featuring modern residential lift design

Example Drawings

Explore the A Series opening drawings to understand space requirements and specifications. All dimensions are in mm and may vary depending on door sizes. Click an opening below to view drawings and specifications.

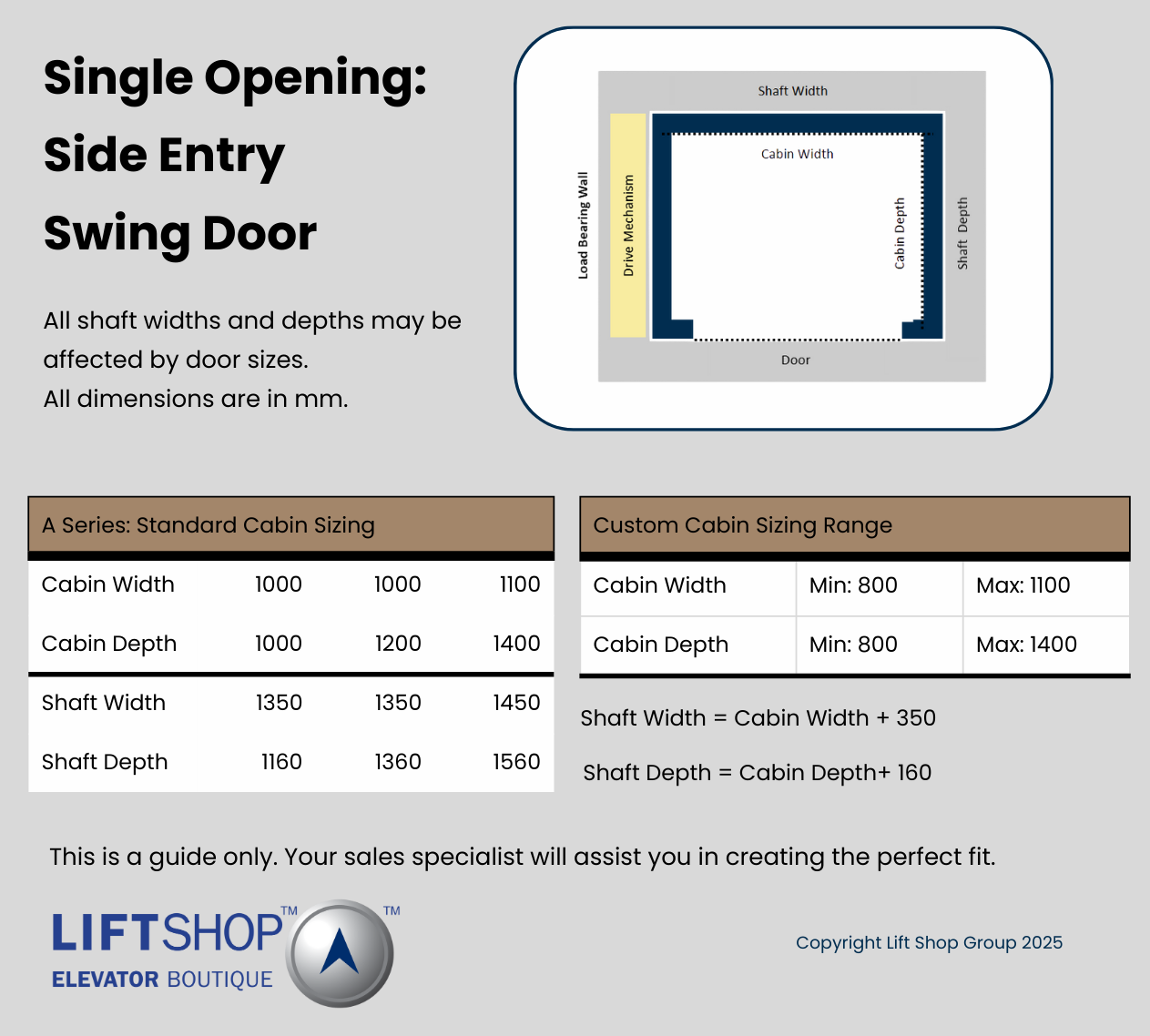

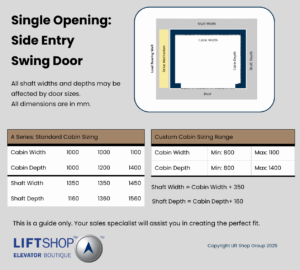

Lift Shop A Series plan drawing: single opening, side drive, swing door, showing cabin and shaft width and depth

Single Opening: Side Entry Swing Door

Standard sizes (mm)SmallMediumLarge
Cabin Width100010001100
Cabin Depth100012001400
Shaft Width135013501450
Shaft Depth116013601560
Custom cabin rangeWidth 800 to 1100
Depth 800 to 1400
Shaft formulaShaft Width = Cabin Width + 350
Shaft Depth = Cabin Depth + 160

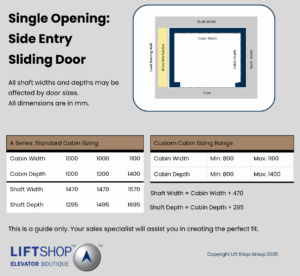

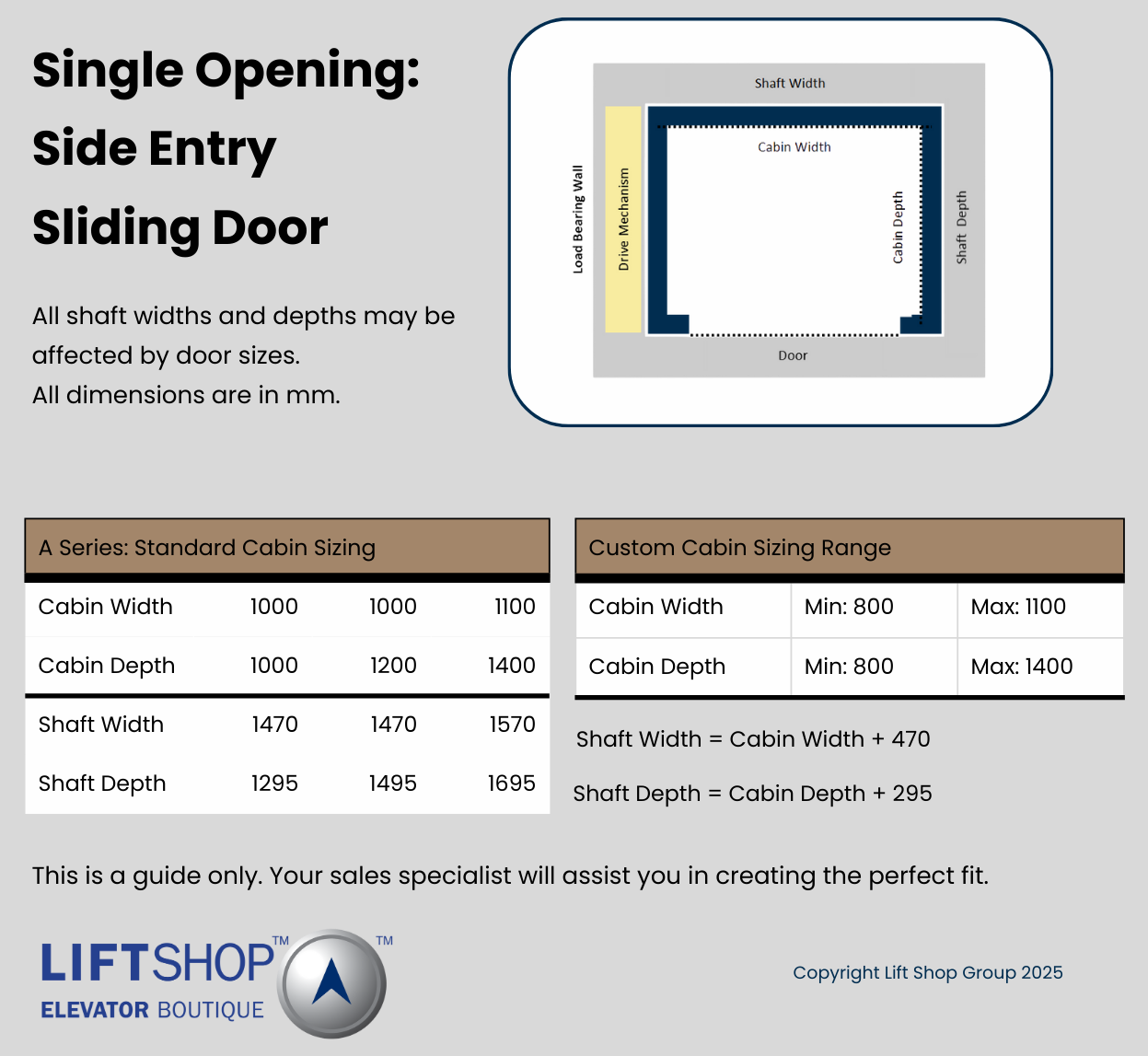

Lift Shop A Series plan drawing: single opening, side drive, sliding door, showing cabin and shaft width and depth

Single Opening: Side Entry Sliding Door

Standard sizes (mm)SmallMediumLarge
Cabin Width100010001100
Cabin Depth100012001400
Shaft Width147014701570
Shaft Depth130015001700
Custom cabin rangeWidth 800 to 1100
Depth 800 to 1400
Shaft formulaShaft Width = Cabin Width + 470
Shaft Depth = Cabin Depth + 300
Absolute minimum shaft width 1470
Lift Shop A Series plan drawing: single opening, rear drive, swing door, showing cabin and shaft width and depth

Single Opening: Rear Entry Swing Door

Standard sizes (mm)SmallMediumLarge
Cabin Width100010001100
Cabin Depth100012001400
Shaft Width116011601260
Shaft Depth135015501750
Custom cabin rangeWidth 800 to 1100
Depth 800 to 1400
Shaft formulaShaft Width = Cabin Width + 160
Shaft Depth = Cabin Depth + 350
Lift Shop A Series plan drawing: single opening, rear drive, sliding door, showing cabin and shaft width and depth

Single Opening: Rear Entry Sliding Door

Standard sizes (mm)SmallMediumLarge
Cabin Width100010001100
Cabin Depth100012001400
Shaft Width147014701570
Shaft Depth149016901890
Custom cabin rangeWidth 800 to 1100
Depth 800 to 1400
Shaft formulaShaft Width = Cabin Width + 470
Shaft Depth = Cabin Depth + 490
Absolute minimum shaft width 1470

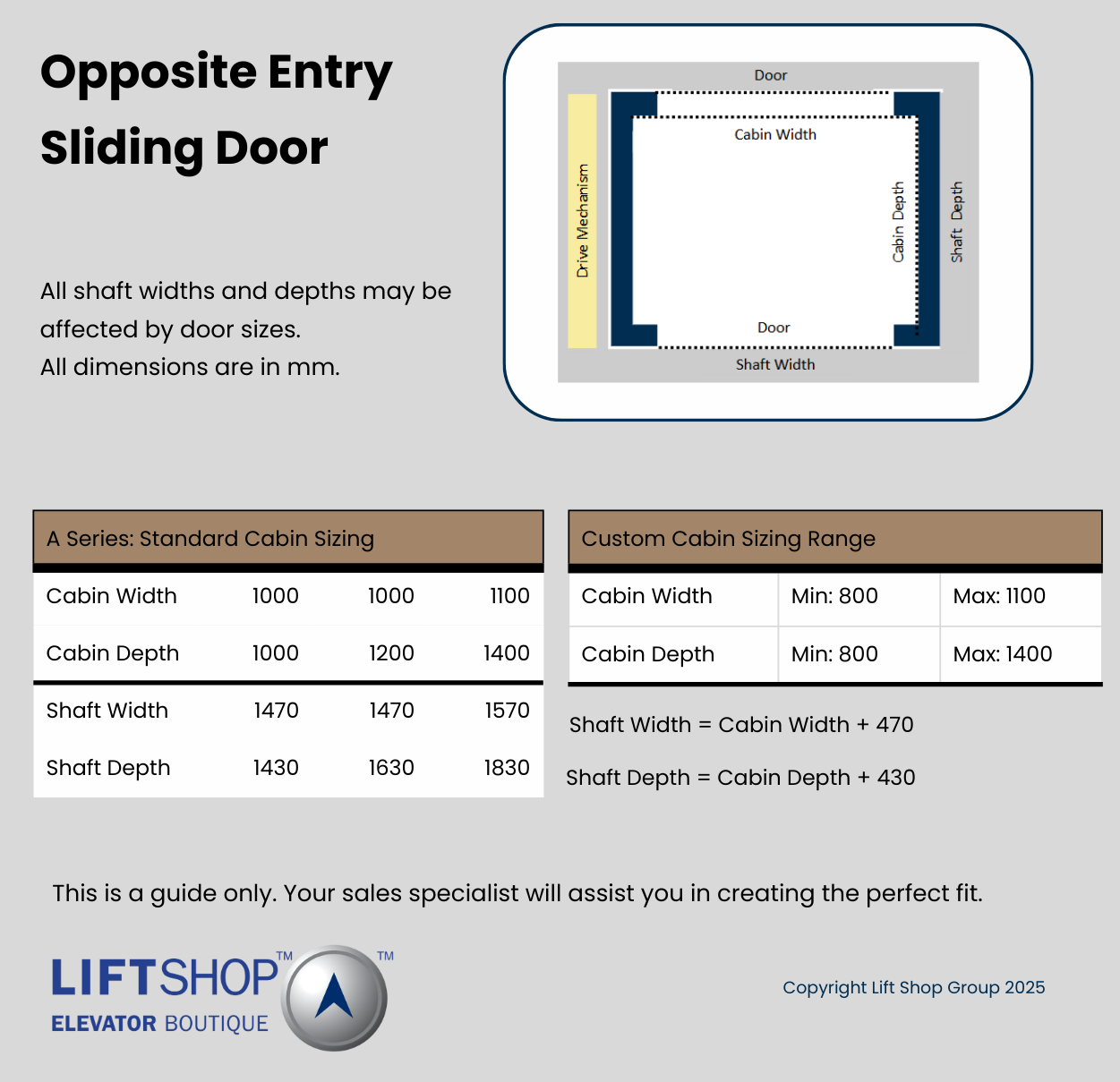

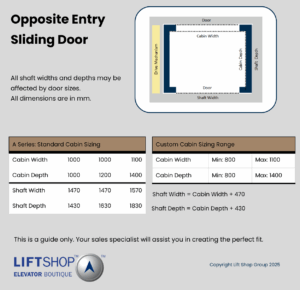

Lift Shop A Series plan drawing: opposite entry, sliding doors, showing cabin and shaft width and depth

Opposite Entry Sliding Door

Standard sizes (mm)SmallMediumLarge
Cabin Width100010001100
Cabin Depth100012001400
Shaft Width147014701570
Shaft Depth144016401840
Custom cabin rangeWidth 800 to 1100
Depth 800 to 1400
Shaft formulaShaft Width = Cabin Width + 470
Shaft Depth = Cabin Depth + 440
Absolute minimum shaft width 1470

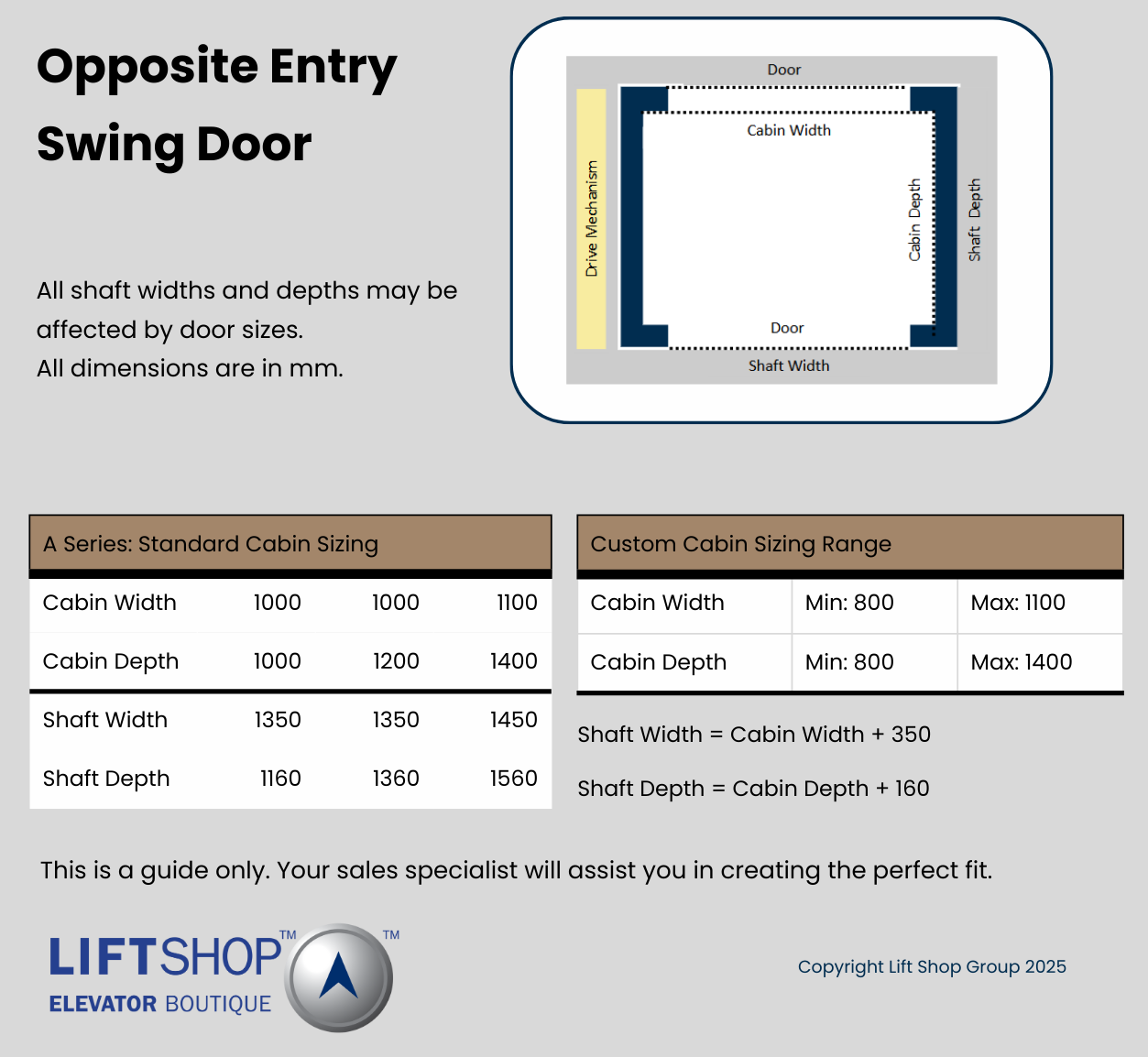

Lift Shop A Series plan drawing: opposite entry, swing doors, showing cabin and shaft width and depth

Opposite Entry Swing Door

Standard sizes (mm)SmallMediumLarge
Cabin Width100010001100
Cabin Depth100012001400
Shaft Width135013501450
Shaft Depth116013601560
Custom cabin rangeWidth 800 to 1100
Depth 800 to 1400
Shaft formulaShaft Width = Cabin Width + 350
Shaft Depth = Cabin Depth + 160
Lift Shop A Series plan drawing: adjacent entry, sliding doors, showing cabin and shaft width and depth

Adjacent Entry Sliding Door

Standard sizes (mm)SmallMediumLarge
Cabin Width100010001100
Cabin Depth100012001400
Shaft Width149015601635
Shaft Depth132015001700
Custom cabin rangeWidth 800 to 1100
Depth 800 to 1400
NoteShaft widths and depths may be affected by door sizes.

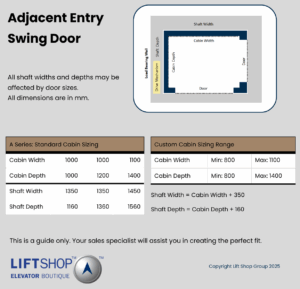

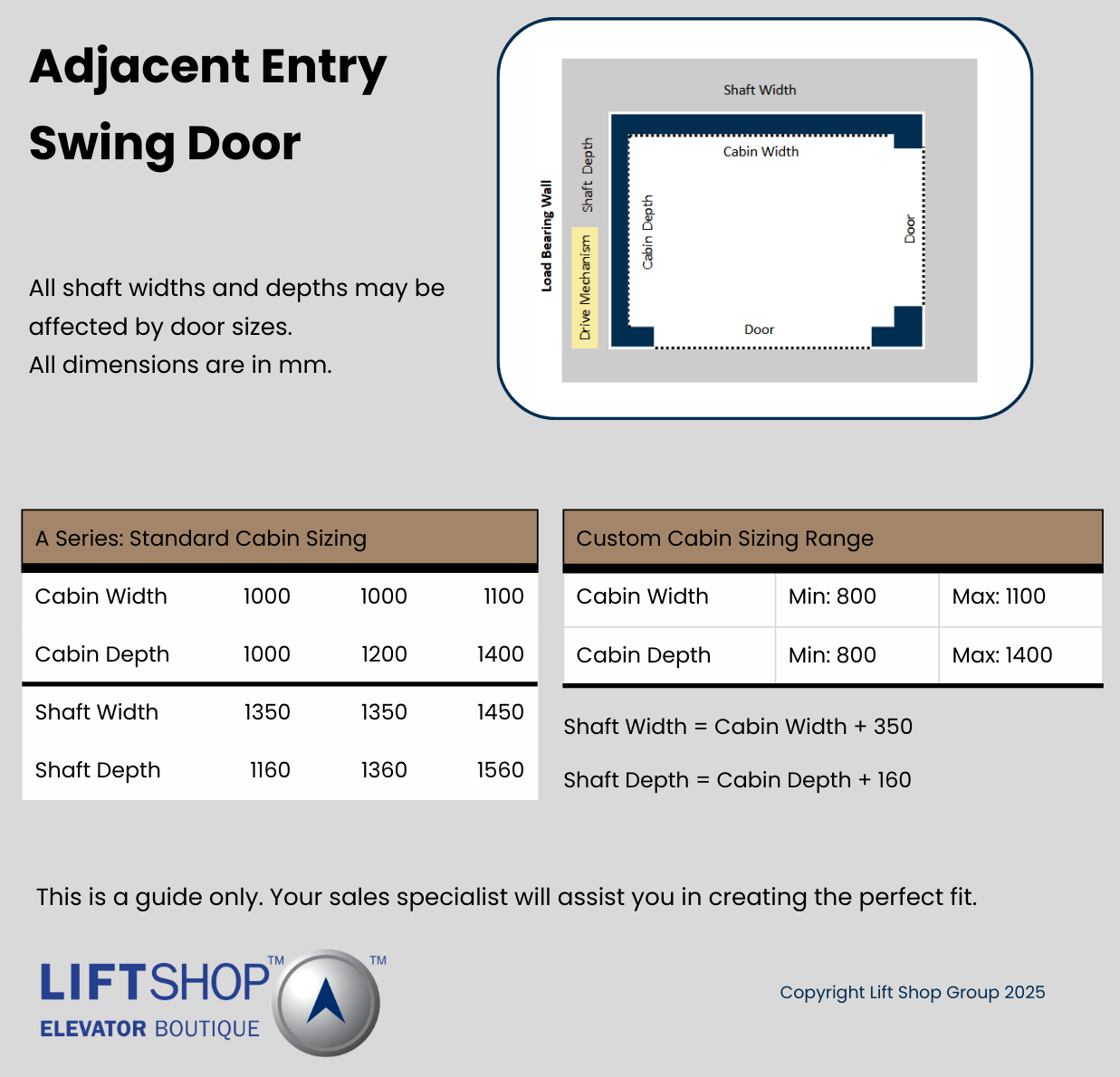

Lift Shop A Series plan drawing: adjacent entry, swing doors, showing cabin and shaft width and depth

Adjacent Entry Swing Door

Standard sizes (mm)SmallMediumLarge
Cabin Width100010001100
Cabin Depth100012001400
Shaft Width135013501450
Shaft Depth116013601560
Custom cabin rangeWidth 800 to 1100
Depth 800 to 1400
Shaft formulaShaft Width = Cabin Width + 350
Shaft Depth = Cabin Depth + 160

This is a guide only. Your Lift Consultant will help you create the perfect fit, and your cabin and shaft sizes are agreed on your quote.

Download Our Brochure

Explore Lift Shop's full range of all Italian luxury home elevators. Access the latest specifications, design options, and superior electric solutions for modern living.

Click to Download

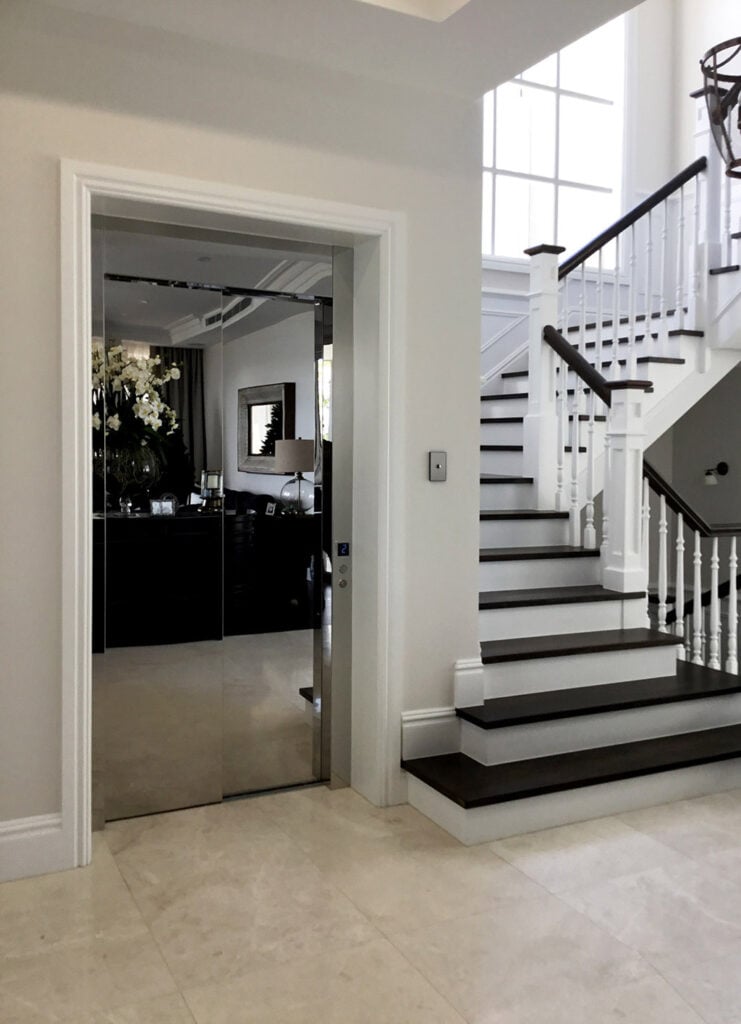

Glass-door Lift Shop home lift with a mirrored cabin beside a curved staircase and marble floor

Trusted by Thousands of Homeowners

We installed 61 lifts in 2004 - 5 per month. Today, we install more than 5 lifts every day.

More Experience. More Installations. A New Lift Every 90 Minutes.

The Best Reviews. The Most Experience. Trusted Professionals.

Fly me to and zoom in on my neighbourhood. (*The interactive map varies the street address by about 50m randomly for privacy.)

A Series home lift with a sliding landing door in a Hurstville home

Request a Tailored Quote

Get a quote
Read our FAQs

A-Series Hydraulic Lift FAQs

  • What is a hydraulic home lift and how does it work?

    A hydraulic home lift uses an electric pump to push pressurised fluid into a cylinder beneath the cabin, raising it smoothly. When you press the down button, fluid returns to the tank, lowering the cabin. The pump operates on single-phase household power.

    Our A-Series hydraulic lift is small and ideal for retrofitting existing homes. It travels at 0.30 m/s and requires minimal pit depth (150 mm in most configurations). The separate hydraulic cabinet houses the pump and is placed discreetly beside the shaft. The system is sealed, requires no machine room, and includes servicing in the first year.

    Learn how hydraulic lifts work

  • How does the A-Series prevent the 'oil smell' associated with older lifts?

    The A-Series uses a fully sealed hydraulic system with biodegradable fluid contained within a closed circuit. There is no oil exposure to air, which is why older lifts smelled - they used open systems with industrial hydraulic fluid that oxidised and evaporated.

    Our sealed pump and cylinder sit in a dedicated cabinet, and the hydraulic lines are encased within the shaft. The biodegradable fluid is kept under pressure and isolation from the cabin environment. Regular servicing includes checking seals and fluid condition, ensuring the system remains completely odour-free throughout the lift's life.

  • Is a hydraulic lift less energy-efficient than an electric traction lift?

    Hydraulic and electric traction lifts have different energy profiles. The A-Series hydraulic lift is highly efficient for typical home use (a few trips per day) and consumes less energy per trip than many people expect. However, electric traction lifts like the C-Series draw power only when moving and have no standby losses.

    For most Australian homes with two to three floors and moderate daily use, the energy difference between hydraulic and electric is negligible. The A-Series' simplicity and robust design mean lower maintenance energy over its lifetime. Choose based on your available space and pit depth rather than energy alone.

  • Is the A-Series suitable for retrofitting into an existing home?

    Yes. The A-Series was designed specifically for retrofitting existing Australian homes. Its small footprint (around 1000 x 1000 mm cabin) and minimal pit depth (150 mm in most configurations) mean it fits into spaces where other lifts cannot. The separate hydraulic cabinet can be positioned discretely beside the shaft.

    We work with builders to integrate the A-Series into existing structures without major renovation disruption. The hydraulic system requires less structural reinforcement than gearless traction alternatives. We provide all engineering drawings and coordinate shaft construction to minimise building timeline impact.

  • How much does the A-Series home lift cost?

    The A-Series hydraulic lift final price depends on the number of floors served, cabin size, door type (swing or sliding), finishes, and site-specific conditions such as pit depth variations or extended hydraulic cabinet placement. Every Lift Shop lift is custom built for one home, so the price is set by your decisions. Our home lift cost guide explains what shapes the investment.

    Every A-Series project receives a detailed fixed-price quote covering supply, installation, testing, and handover. Quotes are valid for 30 days, and once you accept, sign and pay your first deposit, we lock your price for 12 months. Builder works such as shaft construction are quoted separately. For a complete cost breakdown including options and inclusions, request a personalised quotation from our team.

    Learn more about Lift Shop home lifts costs.

  • What pit depth and headroom does the A-Series need?

    The A-Series requires a pit depth of approximately 150 mm in most configurations, though this can vary depending on the specific model and door type. The indicative headroom requirement is 2400 mm.

    These measurements are critical for site assessment and must be confirmed during the design phase. We provide detailed shaft drawings showing exact dimensions based on your chosen cabin size and door configuration. Our team works with your builder or architect to verify these measurements on site before construction begins.

    View pit depth and headroom requirements

  • Where does the hydraulic cabinet go, and how much space does it need?

    The hydraulic cabinet is placed in a dedicated space adjacent to the lift shaft. It houses the pump, motor, and fluid tank and requires adequate ventilation and access for servicing.

    The cabinet is typically positioned in a machine room, plant room, or external enclosure depending on your building layout. We coordinate the placement with your architect and builder to ensure it integrates seamlessly with your home design.

  • Is the A-Series suitable for higher-use homes (multiple trips per hour)?

    The A-Series is designed for typical residential use: a few trips per day. If your home has multiple users making frequent trips throughout the day, the C-Series or E-Series electric traction lifts are better suited for higher-use scenarios.

    Electric traction lifts have no thermal load limitations and recover faster between trips. The A-Series hydraulic system is reliable and durable for normal family use but is not engineered for commercial or high-frequency usage patterns. Our team can assess your home's daily usage and recommend the most suitable series during your consultation.

  • What power supply does the A-Series require?

    The A-Series hydraulic lift operates on single-phase household power at 32A. This is standard domestic supply available in most Australian homes. An electrician can confirm your home's available supply during the site assessment phase.

    The 32A requirement means you may need an upgraded power circuit to the lift location if your existing circuits are heavily loaded. Lift Shop does everything up to an isolator, and your builder or electrician provides the isolator and connects it to the mains. We coordinate that work with your electrician and builder.

  • What free inclusions come standard with the A-Series?

    We include several features as standard with every A-Series lift at no extra cost: In-Cabin Self-Rescue (ICSR) for power-failure safety, a GSM emergency phone for communication during faults, anti-slip cabin flooring, full-height safety beams, automatic door interlocking, and power-failure descent capability.

    Our 8-year warranty covers all mechanical and electrical components. Servicing in the first year is included. We also provide comprehensive handover training for you and your family, covering normal operation, emergency procedures, and basic troubleshooting.

  • What door configurations are available?

    The A-Series is available with both swing and sliding doors, allowing you to choose what best fits your building layout and design preferences. Swing doors pivot on hinges and are ideal for generous doorway spaces. Sliding doors glide horizontally and suit tighter spaces or modern minimalist aesthetics.

    Both configurations are available with cabin sizes of approximately 1000 x 1000 mm or 1000 x 1200 mm. Door type affects pit depth slightly and influences the final dimensions of your shaft. We discuss door options during the design phase and provide detailed drawings showing how each option affects your specific site.
